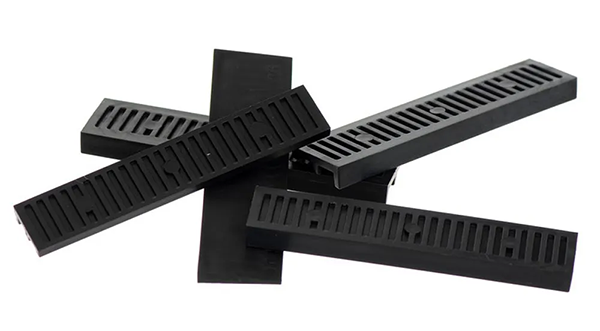

30x100x11.8mm Bridge Glazing Packers

30x100x11.8mm Bridge Glazing Packers are designed for glazing work where a wider bridge packer and a higher support point are needed inside the rebate.

With a 30mm width and 100mm length, these BP30B bridge packers give installers a broad support area beneath the flat packer or sealed unit. The 8mm thickness provides more lift than lower-profile bridge packers, making this product useful where the glass needs to sit higher in the frame or where the rebate design calls for a deeper raised platform.

The 11.8mm bridge profile helps create clearance beneath the support point, allowing the lower section of the rebate to remain open rather than being filled by a flat packer. This makes these packers suitable for drained and ventilated glazing systems where the support point must not interfere with the frame’s intended water-management route.

Made from polypropylene, these bridge packers are rigid, moisture-resistant, and suitable for trade glazing installations.

Why installers choose 30x100x11.8mm Bridge Glazing Packers:

• 30mm width provides a wide support platform
• 8mm thickness for higher glass positioning
• Useful where a 6mm bridge packer is not enough
• Helps support flat packers above the rebate base
• Suitable for wider glazing channels and larger sealed units
• Helps keep lower rebate space clear
• Polypropylene construction for firm installation support

These BP30B bridge glazing packers are a useful option when the installation needs a wider 30mm bridge packer with additional height for a more substantial raised support point.

What the 8mm Thickness is Used For

8mm – Higher Raised Support for Wider Rebate Systems

Used where the glazing unit needs more lift than a standard low-profile bridge packer can provide.

Best for:

• Wider glazing rebates
• Deeper support requirements
• Raising the sealed unit within the frame
• Pairing with wider flat glazing packers
• Window, door, conservatory, and curtain walling glazing work
