Standard Bridge Glazing Packers
Standard Bridge Glazing Packers – Raised Support Packers for Drained Glazing Rebates
Standard bridge glazing packers are used inside glazing rebates to create a raised support point for flat glazing packers and insulated glass units.
Unlike a flat packer placed directly on the base of the rebate, a bridge packer lifts the packing surface above the lower channel. This helps support the glass unit while leaving space underneath for drainage and ventilation within the frame. These packers are commonly used in uPVC, aluminium, and timber glazing systems where the rebate includes water escape routes or airflow paths that should not be blocked during installation.
Our standard bridge glazing packer range includes multiple widths, heights, and profiles for different glazing channels and rebate designs. Add the bridge packers you need to your quote request and we’ll confirm pricing, availability, and delivery time before you order.
Request a Quote (4-Hour* Quote Turnaround, 3-Day Delivery)
Standard Bridge Glazing Packers
12x100mm Bridge Glazing Packers
13x100mm Bridge Glazing Packers
15x100mm Bridge Glazing Packers
20x100mm Bridge Glazing Packers
22x100mm Bridge Glazing Packers
24x100x7.5mm Bridge Glazing Packers
24x100x8mm Bridge Glazing Packers
25.5x100x1.7mm Bridge Glazing Packers
25x100x6.6mm Bridge Glazing Packers
26x100mm Bridge Glazing Packers
28x100mm Bridge Glazing Packers
30x100x11.8mm Bridge Glazing Packers
30x100x12mm Bridge Glazing Packers
30x100x6.5mm Bridge Glazing Packers
32x100x10mm Bridge Glazing Packers

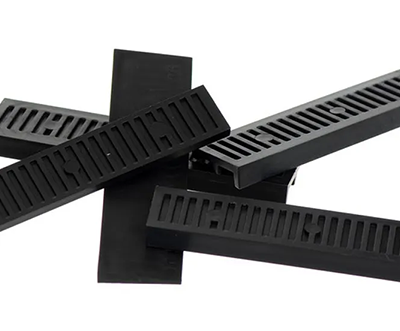

32x100x7mm Bridge Glazing Packers
32x100x9.5mm Bridge Glazing Packers
34x100x16.5mm Bridge Glazing Packers
*Most quotes are turned around in 4 hours during normal working hours, Monday to Friday.
What Are Standard Bridge Glazing Packers Used For?
Standard bridge glazing packers are used where the glass support point needs to be raised above the base of the glazing rebate.
In many drained glazing systems, the bottom of the rebate is designed to allow water to escape and air to circulate. If a flat packer is placed directly over that area, it may block part of the drainage route. A bridge packer helps avoid this by creating a raised platform for the flat packer or sealed unit.
This makes standard bridge packers useful for:
- Creating a raised support bed inside the glazing rebate
- Supporting flat glazing packers and sealed units
- Helping keep drainage and ventilation paths clear
- Raising the glass unit to the correct position
- Matching the support width to the glazing channel
- Working with uPVC, aluminium, and timber frame systems
Standard bridge packers are available in narrow sizes for slim glazing channels, wider options for larger systems, and higher profiles for deeper rebate build-up.
Choosing the Right Standard Bridge Packer
Choose the bridge packer based on the glazing channel width, rebate depth, drainage layout, and the flat packer or sealed unit it will support.
- Narrow bridge packers, such as 12mm, 13mm, and 15mm, are useful in slimmer glazing rebates where space is limited.
- Standard-width bridge packers, such as 20mm, 22mm, 24mm, 25mm, 26mm, and 28mm, suit many common glazing applications and flat packer setups.
- Wider bridge packers, such as 30mm, 32mm, and 34mm, provide a broader bearing surface where the glazing system allows for wider support beneath the unit.
Choose a lower-height bridge packer where only a small lift is required. Choose a higher bridge packer where the rebate is deeper or the sealed unit needs a larger height build-up before final glazing.
Standard Bridge Glazing Packers – FAQs
Standard bridge glazing packers are used to create a raised support point inside a glazing rebate. They are often used beneath flat glazing packers to support the sealed unit while helping keep drainage and ventilation paths clear.
Flat packers sit directly under or around the glass unit for spacing and support. Bridge packers are shaped to raise the support point above the rebate base, helping leave space beneath the packer.
Choose a width that suits the glazing channel and the flat packer or sealed unit being supported. Narrow packers are useful in tight channels, while wider packers provide a broader support surface.
Choose the height based on the rebate depth and the amount of lift required. Lower bridge packers are useful for shallow rebates, while higher bridge packers are used where the unit needs more height build-up.
Yes, bridge glazing packers are commonly used in uPVC glazing systems, especially where the frame has drainage paths that should remain clear. Suitability still depends on the specific profile and rebate design.
Yes. Bridge packers are commonly used beneath flat glazing packers to create a raised support bed for the sealed unit.
Yes. Standard bridge glazing packers are supplied in trade pack quantities, and larger or specialist requirements can be quoted.
Need help choosing standard bridge glazing packers?
Email support@glazingpacker.co.uk and we’ll help you choose the right bridge packer width, height, and profile for your glazing job.
