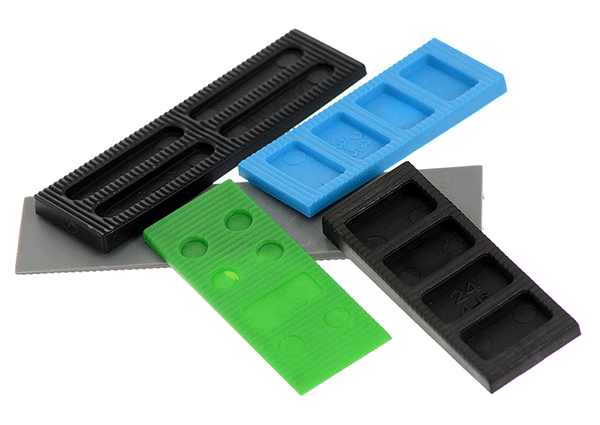

30x80mm Wedge Glazing Packers

30x80mm Wedge Glazing Packers are wide tapered packers designed for glazing jobs where the installer needs both a broad contact face and controlled adjustment inside the sash or frame.

With a 30mm width, these wedge packers offer a larger bearing surface than narrower 20mm, 24mm, 26mm, and 28mm wedges. This makes them useful for wider glazing channels, larger sealed units, and installations where a broader wedge gives better contact and more confident positioning.

The 80mm length keeps the packer practical to handle on site while still giving enough contact area for steady adjustment. The taper allows the wedge to be inserted gradually to tighten the unit, reduce movement, and help achieve a better fit before the glazing beads are installed.

These WP30 wedge packers are available in five taper ranges, making them suitable for everything from small finishing corrections to more substantial gap take-up.

Why installers choose 30x80mm Wedge Glazing Packers:

• 30mm width for wider glazing channels and larger unit support
• 80mm length offers a good balance of control and contact
• Helps remove movement around sealed units
• Useful for sash alignment, door adjustment, and toe-and-heel work
• Wide taper range for fine, standard, and stronger corrections
• Suitable for window, door, conservatory, and curtain walling glazing
• Made from durable polypropylene for trade use

These 30x80mm wedge glazing packers are a versatile option for installers who need a wider wedge with multiple taper choices for different glazing gaps and adjustment requirements.

What Each Taper is Used For

1-3mm – Fine Finishing Adjustment

Used where the glass unit is nearly correctly positioned and only a light wedge action is required.

Best for:

• Final sash adjustment
• Small glazing gaps
• Light movement control
• Minor toe-and-heel correction
• Fine positioning before beading

2-4mm – Light-to-Standard Wedging

Used when the unit needs a little more tightening than a very fine wedge can provide.

Best for:

• Small-to-moderate gap take-up
• General unit positioning
• Light sash or door correction
• Reducing slight play inside the frame
• Controlled glazing adjustment

3-5mm – Everyday Glazing Correction

A useful mid-range taper for regular window and door glazing work.

Best for:

• Standard sealed unit tightening
• Routine sash alignment
• Common toe-and-heel adjustments
• Stabilising units after initial packing
• General trade installation use

4-6mm – Firmer Hold for Larger Gaps

Used where a stronger wedge is required to take up more space and hold the unit more securely.

Best for:

• More noticeable glazing gaps
• Firmer door and sash alignment
• Stronger movement reduction
• Larger sealed unit adjustment
• Installations where 3-5mm is too light

6-8mm – Heavy Adjustment & Positive Tightening

The deepest taper option in this range, used when the installation needs a stronger wedging action.

Best for:

• Larger gaps in wider glazing channels
• Heavy-duty unit stabilisation
• Stronger toe-and-heel support
• Bigger door or sash corrections
• Applications where a firm final hold is required
